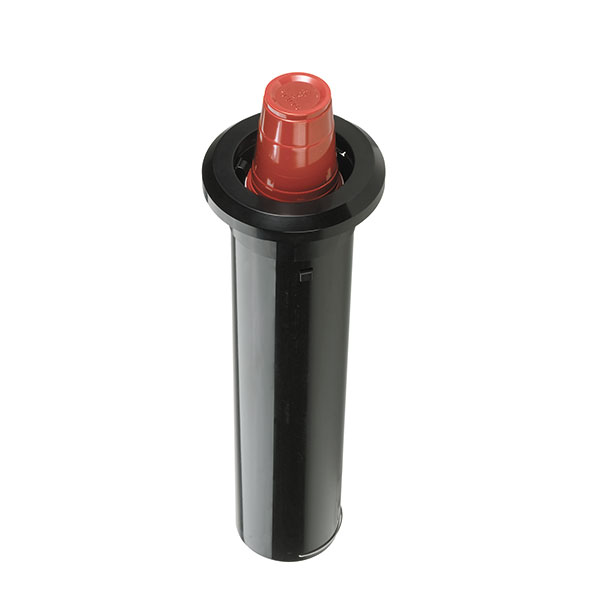

  • STL-2-upright.jpg17347Image

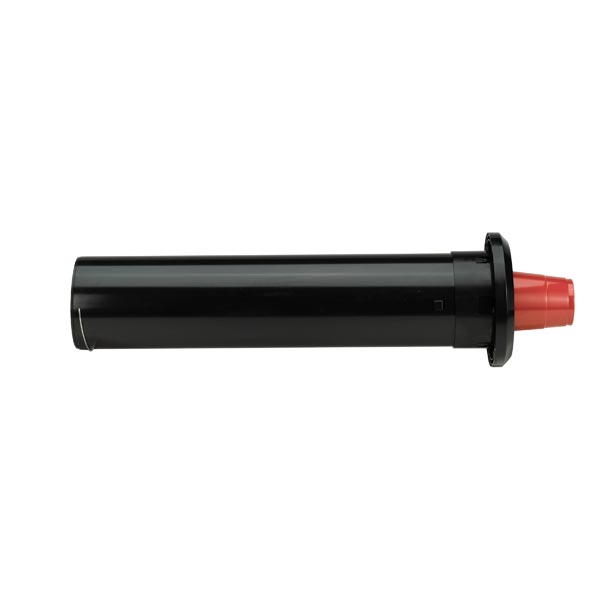

  • STL-2-side-view.jpg8153Image
  • STL-2-Collar.jpg22122Image

Model STL-2

In-Counter adjustable plastic cup dispenser - 2 spring - 22" Length
8 oz. to 44 oz. cups
ABS plastic cup dispenser - 22" Length - F & P springs
Simple and fast tool free adjustment mechanism (adjustable clips)
Integrated mounting collar fully supports dispenser from front of counter
NSF listed
Cup rim diameters: 3-1/8" to 4-1/2"
Note:This dispenser ships with both "F" (light) and "P" (heavy) compression springs for all cup types and all mounting applications. Always verify cup rim diameter prior to ordering.
Where to BuyView Product PDF

Product Overview

STL-2 cup dispensers are the only dispensers you will need for a variety of paper, plastic and foam cups ranging from 8 oz. to 44 oz. These one-size-fits-all in-counter cup dispensers utilize a simple and fast tool free adjustment mechanism to adjust for cups and containers with rim diameters ranging from 3 1/8" – 4 1/2". This model includes two compression springs and will work with all cups in a horizontal, angled or vertical mounting application. Dispenser has a standard under-counter length of 22". Innovative design allows the dispenser to be adjusted without removing from the counter. Quality ABS plastic construction with a no-jam design provides years of dispensing reliability. All models are NSF listed.

Product Specifications

Model #:
STL-2
Product Family:
STL Series
Product Description:
In-Counter adjustable plastic cup dispenser - 2 spring - 22" Length
Product Dimensions:
7-1/8" Dia. X 23" L
Accommodates:
8 oz. to 44 oz. paper, plastic or foam cups
Other Specifications:
Cup Dispenser, adjustable, two springs (F & P), in-counter, holds 8 oz. to 44 oz. cups, rim dia. 3-1/8" - 4-1/2", ring bezel 7-1/8", cut-out 5-1/4", 22" under-counter length, ABS plastic construction, for paper, plastic and foam cups in vertical, horizontal or angled mounting, NSF
Construction Material:
ABS plastic
Dispensing Mechanism:
Adjustment clips
Country of Origin:
USA
Certifications:
NSF, One-Size-Fits-All, USA,

Packaging Specifications

Case Quantity:
6
UPC Master Case:
812483012476
Master Carton Dimensions:
24" L x 18" W x 24" H
Master Carton Cubic Feet :
6
Physical Case Weight:
26
UPS/FedEx Dimensional Case Weight:
75
UPC Individual Carton:
812483019079
Individual Carton Dimensions:
8" L x 8" W x 24" H
Individual Carton Cubic Feet:
0.89

Product Resources

Product Instructions

STL_Series_Installation_Instructions.pdfSTL_Series_Troubleshooting_Guide.pdf

Spec Sheets

STL_Series_Adjustable_Cup_Dispensers.pdfSTL_Series_Specification_Sheet.pdfSTL-2_Series_Drawing_and_Dimensions.pdf

Cad/Revit

STL-2_Elevation_View.dwgSTL-2_Side_View.dwgSTL-2_Plan_View.dwg

Parts

Adjustable_Cup_Dispenser_Parts_List.pdf

Accessories

STL-2-SMB.htm

STL-2-SMB

Surface-mount undercounter mounting bracket for (1) STL-2 or (1) SLR-2 cup dispenser

Accommodates:

STL2R-SS.htm

STL2R-SS

Optional silver plated ring bezel - STL-2 Series cup dispenser

Accommodates:

UCMB-1BT.htm

UCMB-1BT

Surface-mount undercounter mounting bracket for (1) STL-2, SLR-2, ADJ-2 or BFL-2 cup dispenser or SLR-LID-2 lid dispenser - Black Polystryrene

Accommodates: (1) STL-2, SLR-2, ADJ-2 or BFL-2 cup dispenser or SLR-LID-2 lid dispenser

Related Products

STL-2S.htm

STL-2S

In-Counter adjustable plastic cup dispenser - 2 spring - 17" Length

Accommodates: 8 oz. to 44 oz. paper, plastic or foam cups

STL-2L.htm

STL-2L

In-Counter adjustable plastic cup dispenser - 2 spring - 28" Length

Accommodates: 8 oz. to 44 oz. paper, plastic or foam cups

STL-2F.htm

STL-2F

In-Counter adjustable plastic cup dispenser - 1 spring - 22" Length

Accommodates: 8 oz. to 44 oz. paper, plastic or foam cups

STL-2FS.htm

STL-2FS

In-Counter adjustable plastic cup dispenser - 1 spring - 17" Length

Accommodates: 8 oz. to 44 oz. paper, plastic or foam cups
