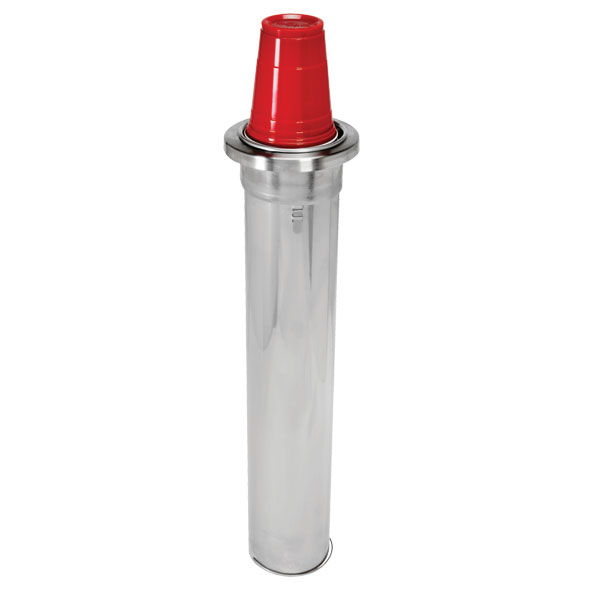

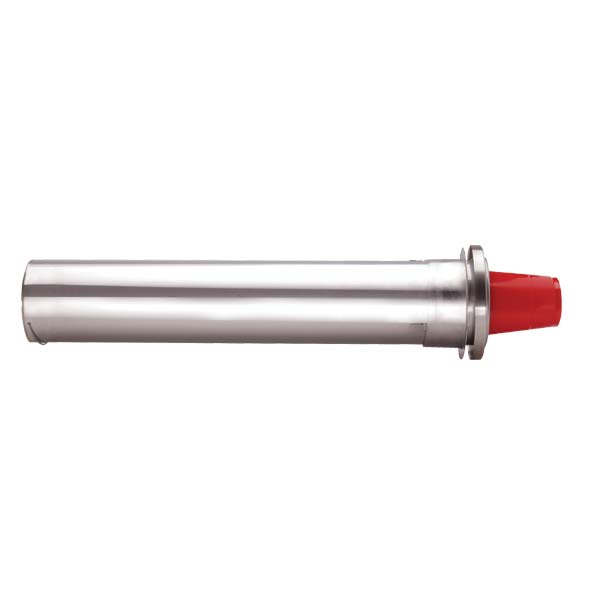

Model ADJ-1.50

In-Counter adjustable stainless steel cup dispenser - 2 spring - 22" Length
8 oz. to 24 oz. cups
Stainless steel cup dispenser - 22" Length - F & P springs
Precision spring steel adjustment mechanism (adjustable clips)
Quick release stainless steel mounting collar for easy cleaning
NSF listed
Cup rim diameters: 3" to 3-7/8"
Note:This dispenser ships with both "F" (light) and "P" (heavy) compression springs for all cup types and all mounting applications. Always verify cup rim diameter prior to ordering.
Where to BuyView Product PDF

Product Overview

The ADJ-1.50 is the ideal dispenser for smaller cup sizes and tight spaces. This unit is designed to accommodate 8 oz. to 24 oz. paper, plastic or foam cups with rim diameters ranging in size from 3"–3 7/8". The ADJ-1.50 model requires a 4-1/2" hole cut-out and combines dispensing flexibility with space savings. This model includes two compression springs and will work with all cups in a horizontal, angled or vertical mounting application. Dispenser has a standard under-counter length of 22". ADJ Series cup dispensers feature quality stainless steel construction. All models are NSF listed.

Product Specifications

Model #:
ADJ-1.50
Product Family:
ADJ Series
Product Description:
In-Counter adjustable stainless steel cup dispenser - 2 spring - 22" Length
Product Dimensions:
5-5/8" Dia. X 22-9/16" L
Accommodates:
8 oz. to 24 oz. paper, plastic or foam cups
Other Specifications:
Cup Dispenser, adjustable, two springs (F & P), in-counter, rim dia. 3" - 3-7/8", ring bezel 5-5/8", cut-out 4-1/2", 22" under-counter length, stainless steel construction, for paper, plastic and foam cups in vertical, horizontal or angled mounting, NSF
Construction Material:
Stainless steel
Dispensing Mechanism:
Adjustment clips
Country of Origin:
USA
Certifications:
NSF, USA,

Packaging Specifications

Case Quantity:
6
UPC Master Case:
812483015927
Master Carton Dimensions:
24" L x 18" W x 24" H
Master Carton Cubic Feet :
6
Physical Case Weight:
27
UPS/FedEx Dimensional Case Weight:
75
UPC Individual Carton:
812483019376
Individual Carton Dimensions:
8" L x 8" W x 24" H
Individual Carton Cubic Feet:
0.89

Product Resources

Product Instructions

ADJ_Series_Installation_Instructions.pdfADJ_Series_Troubleshooting_Guide.pdfADJ_Series_Adjustment_Clip_Instructions.pdf

Spec Sheets

ADJ_Series_Adjustable_Cup_Dispensers.pdfADJ_Series_Specification_Sheet.pdfADJ-1.50_Series_Drawing_and_Dimensions.pdfADJ-1.50_Series_Mounting_Collar_Drawing.pdf

Cad/Revit

ADJ-1.50_Elevation_View.dwgADJ-1.50_Side_View.dwgADJ-1.50_Plan_View.dwg

Parts

Adjustable_Cup_Dispenser_Parts_List.pdf
