35178/products/ADJ-2S.htmADJ SeriesThis dispenser ships with both "F" (light) and "P" (heavy) compression springs for all cup types and all mounting applications. Always verify cup rim diameter prior to ordering.Cup rim diameters: 3" to 4-5/86-7/8" Dia. X 19-9/16" LStainless steelAdjustment clipsUSA132.006812483012094287524" L x 18" W x 24" H8124830187998" L x 8" W x 24" H8 oz. to 44 oz. paper, plastic or foam cupsCup Dispenser, adjustable, two springs (F & P), in-counter, holds 8 oz. to 44 oz. cups, rim dia. 3" - 4-5/8", ring bezel 6-7/8", cut-out 5-1/4", 19" under-counter length, stainless steel construction, for paper, plastic and foam cups in vertical, horizontal or angled mounting, NSF8 oz. to 44 oz. cupsStainless steel cup dispenser - 19" Length - F & P springsPrecision spring steel adjustment mechanism (adjustable clips)Quick release stainless steel mounting collar for easy cleaningNSF listed60.89ADJ-2SCup rim diameters: 3" to 4-5/8"In-counter cup dispenser - 19" LADJ-2S In-counter cup dispenserThe ADJ-2 is our most popular cup dispenser. It is a One-Size-Fits-All model that offers complete dispensing flexibility. This unit is designed to accommodate a variety of 8 oz. to 44 oz. paper, plastic or foam cups with rim diameters ranging in size from 3"–4 5/8". The ADJ-2 models require a 5 1/4" hole cut-out. Dispenser has a standard under-counter length of 19". ADJ Series cup dispensers feature quality stainless steel construction. All models are NSF listed.In-Counter adjustable stainless steel cup dispenser - 2 spring - 19" Length40ADJ-2S | DISPENSE-RITEConstruction materialStainless steelCup or lid size8 oz. to 44 oz.Dispensing mechanismAdjustment clipsHousing typeMounting applicationIn-counterNapkin foldNapkin sizeNumber of accessory compartmentsNoneNumber of cup or lid dispensers1Product categoryCup DispensersProduct familyADJ SeriesProducts dispensedCupsSymbolsNSFOne-Size-Fits-AllUSA02016-02-22T14:01:06.580003517ADJ-2S/products/ADJ-2S.htmIn-Counter adjustable stainless steel cup dispenser - 2 spring - 19" Length

ADJ-2S In-counter cup dispenser

Click image to enlarge

  • ADJ-2S.jpg20950Image

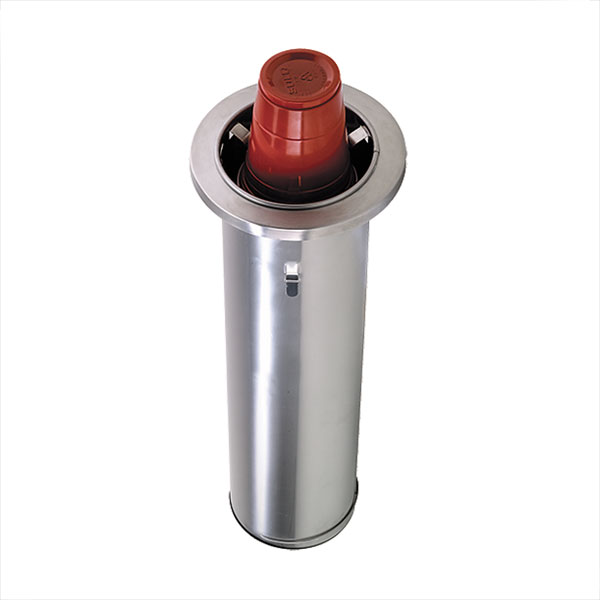

  • ADJ-2S-upright.jpg22368Image

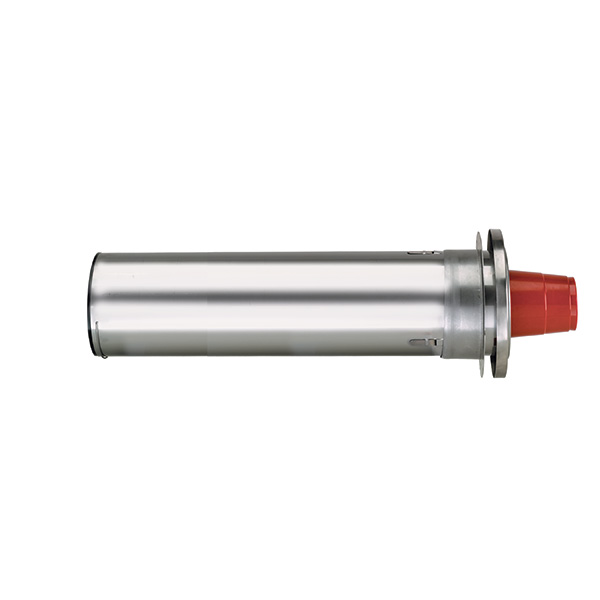

  • ADJ-2S-side-view.jpg19026Image
  • ADJ-2M-Mounting-Collar.jpg17164Image
  • 143430715-teaser.jpg
  • 144055947-teaser.jpg

Model ADJ-2S

In-Counter adjustable stainless steel cup dispenser - 2 spring - 19" Length
8 oz. to 44 oz. cups
Stainless steel cup dispenser - 19" Length - F & P springs
Precision spring steel adjustment mechanism (adjustable clips)
Quick release stainless steel mounting collar for easy cleaning
NSF listed
Cup rim diameters: 3" to 4-5/8"
Note:This dispenser ships with both "F" (light) and "P" (heavy) compression springs for all cup types and all mounting applications. Always verify cup rim diameter prior to ordering.
Where to BuyView Product PDF

Product Overview

The ADJ-2 is our most popular cup dispenser. It is a One-Size-Fits-All model that offers complete dispensing flexibility. This unit is designed to accommodate a variety of 8 oz. to 44 oz. paper, plastic or foam cups with rim diameters ranging in size from 3"–4 5/8". The ADJ-2 models require a 5 1/4" hole cut-out. Dispenser has a standard under-counter length of 19". ADJ Series cup dispensers feature quality stainless steel construction. All models are NSF listed.

Product Specifications

Model #:
ADJ-2S
Product Family:
ADJ Series
Product Description:
In-Counter adjustable stainless steel cup dispenser - 2 spring - 19" Length
Product Dimensions:
6-7/8" Dia. X 19-9/16" L
Accommodates:
8 oz. to 44 oz. paper, plastic or foam cups
Other Specifications:
Cup Dispenser, adjustable, two springs (F & P), in-counter, holds 8 oz. to 44 oz. cups, rim dia. 3" - 4-5/8", ring bezel 6-7/8", cut-out 5-1/4", 19" under-counter length, stainless steel construction, for paper, plastic and foam cups in vertical, horizontal or angled mounting, NSF
Construction Material:
Stainless steel
Dispensing Mechanism:
Adjustment clips
Country of Origin:
USA
Certifications:
NSF, One-Size-Fits-All, USA,

Packaging Specifications

Case Quantity:
6
UPC Master Case:
812483012094
Master Carton Dimensions:
24" L x 18" W x 24" H
Master Carton Cubic Feet :
6
Physical Case Weight:
28
UPS/FedEx Dimensional Case Weight:
75
UPC Individual Carton:
812483018799
Individual Carton Dimensions:
8" L x 8" W x 24" H
Individual Carton Cubic Feet:
0.89

Product Resources

Product Instructions

ADJ_Series_Installation_Instructions.pdfADJ_Series_Troubleshooting_Guide.pdfADJ_Series_Adjustment_Clip_Instructions.pdf

Spec Sheets

ADJ_Series_Adjustable_Cup_Dispensers.pdfADJ_Series_Specification_Sheet.pdfADJ-2_Series_Drawing_and_Dimensions.pdfADJ-2_Series_Mounting_Collar_Drawing.pdf

Cad/Revit

ADJ-2S_Elevation_View.dwgADJ-2S_Side_View.dwgADJ-2S_Plan_View.dwg

Parts

Adjustable_Cup_Dispenser_Parts_List.pdf
