BFL-2F In-counter cup dispenser

Click image to enlarge

  • BFL-2.jpg12496Image
  • BFL-2-side-view.jpg10271Image
  • BFL-2-head-on.jpg28812Image
  • 144127401-teaser.jpg

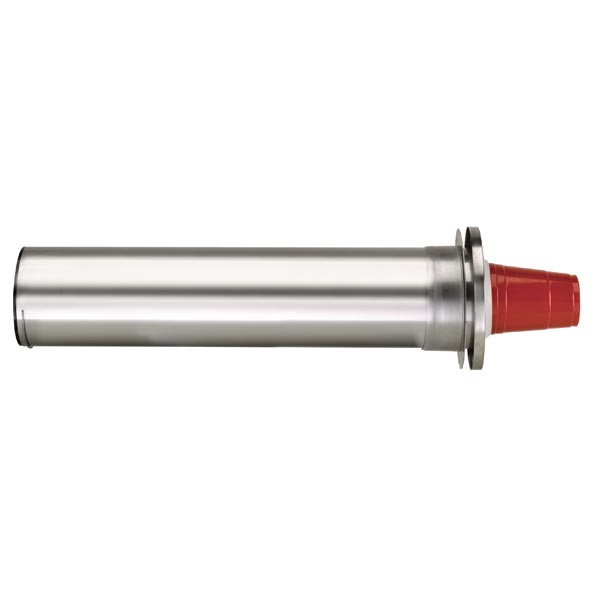

Model BFL-2F

In-Counter interchangeable baffle stainless steel cup dispenser - 1 spring - 22" Length
8 oz. to 44 oz. cups
Stainless steel cup dispenser - 22" Length - F spring only
Includes four interchangable baffles (gaskets) for self adjusting simplicity
Quick release stainless steel mounting collar for easy cleaning
NSF listed
Cup rim diameters: 3" to 4-1/2"
Note:This dispenser ships with a single "F" (light) compression spring and is for use with paper, plastic or foam cups in a horizontal positon or foam cups in a vertical position. Always verify cup rim diameter prior to ordering.
Where to BuyView Product PDF

Product Overview

The BFL-2 model offers maximum dispensing flexibility. This unit is designed to accommodate a variety of 8 oz. to 44 oz. paper, plastic or foam cups with rim diameters ranging in size from 3"– 4 1/2". The BFL-2 models require a 5 1/4" hole cut-out. This model includes a single light compression spring and will work with foam cups in any mounting position and paper/plastic cups in horizontal mounting positions. Dispenser has a standard under-counter length of 22". BFL Series cup dispensers feature quality stainless steel construction. These dispensers utilize an interchangeable silicone baffle gasket system. All models are NSF listed.

Product Specifications

Model #:
BFL-2F
Product Family:
BFL Series
Product Description:
In-Counter interchangeable baffle stainless steel cup dispenser - 1 spring - 22" Length
Product Dimensions:
6-7/8" Dia. X 22-9/16" L
Accommodates:
8 oz. to 44 oz. paper, plastic or foam cups
Other Specifications:
Cup Dispenser, (4) interchangeable silicone baffles, one spring (F), in-counter, holds 8 oz. to 44 oz. cups, rim dia. 3" - 4-1/2", ring bezel 6-7/8", cut-out 5-1/4", 22" under-counter length, stainless steel construction, for paper and plastic cups in horizontal mounting positions or foam cups in any mounting position, NSF
Construction Material:
Stainless steel
Dispensing Mechanism:
Interchangeable baffles (gaskets)
Country of Origin:
USA
Certifications:
NSF, One-Size-Fits-All, USA,

Packaging Specifications

Case Quantity:
6
UPC Master Case:
812483012193
Master Carton Dimensions:
24" L x 18" W x 24" H
Master Carton Cubic Feet :
6
Physical Case Weight:
28
UPS/FedEx Dimensional Case Weight:
75
UPC Individual Carton:
812483018829
Individual Carton Dimensions:
8" L x 8" W x 24" H
Individual Carton Cubic Feet:
0.89

Product Resources

Product Instructions

BFL_Series_Installation_Instructions.pdf

Spec Sheets

BFL_Series_Baffle_Cup_Dispensers.pdfBFL_Series_Specification_Sheet.pdfBFL-2_Series_Drawing_and_Dimensions.pdf

Cad/Revit

BFL-2F_Elevation_View.dwgBFL-2F_Side_View.dwgBFL-2F_Plan_View.dwg

Parts

Baffle_Cup_Dispenser_Parts_List.pdf
