BFL-3 In-counter cup dispenser

Click image to enlarge

  • BFL-3.jpg13385Image

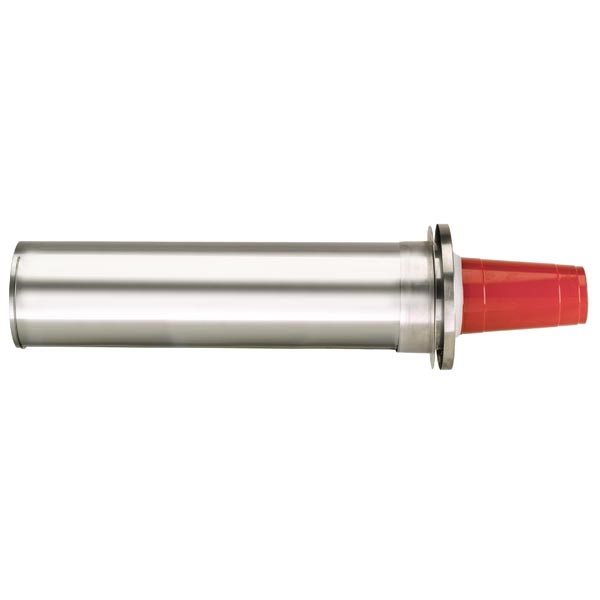

  • BFL-3-side-view.jpg10211Image
  • 144127401-teaser.jpg

Model BFL-3

In-Counter interchangeable baffle stainless steel cup dispenser - 2 spring - 22" Length
44 oz. to 64 oz. cups
Stainless steel cup dispenser - 22" Length - F & P springs
Includes two interchangable baffles (gaskets) for self adjusting simplicity
Quick release stainless steel mounting collar for easy cleaning
NSF listed
Cup rim diameters: 4-1/2" to 5-1/4"
Note:This dispenser ships with both "F" (light) and "P" (heavy) compression springs for all cup types and all mounting applications. Always verify cup rim diameter prior to ordering.
Where to BuyView Product PDF

Product Overview

The BFL-3 is the ideal dispenser for jumbo size drink cups and deli containers. This unit is designed to accommodate a variety of 44 oz. to 64 oz. paper, plastic or foam cups with rim diameters ranging in size from 4 1/2"–5 1/4". The BFL-3 model requires a larger 5 3/4" hole cut-out. This model includes two compression springs and will work with all cups in a horizontal, angled or vertical mounting application. Dispenser has a standard under-counter length of 22". BFL Series cup dispensers feature quality stainless steel construction. These dispensers utilize an interchangeable silicone baffle gasket system. All models are NSF listed.

Product Specifications

Model #:
BFL-3
Product Family:
BFL Series
Product Description:
In-Counter interchangeable baffle stainless steel cup dispenser - 2 spring - 22" Length
Product Dimensions:
7-3/8" Dia. X 22-9/16" L
Accommodates:
44 oz. to 64 oz. paper, plastic or foam cups
Other Specifications:
Cup Dispenser, includes (2) interchangeable silicone baffles, two springs (F & P), in-counter, holds 44 oz. to 64 oz. cups, rim dia. 4-1/2" - 5-1/4", ring bezel 7-3/8", cut-out 5-3/4", 22" under-counter length, stainless steel construction, for paper, plastic and foam cups in vertical, horizontal or angled mounting, NSF
Construction Material:
Stainless steel
Dispensing Mechanism:
Interchangeable baffles (gaskets)
Country of Origin:
USA
Certifications:
NSF, USA,

Packaging Specifications

Case Quantity:
6
UPC Master Case:
812483012315
Master Carton Dimensions:
24" L x 18" W x 24" H
Master Carton Cubic Feet :
6
Physical Case Weight:
36
UPS/FedEx Dimensional Case Weight:
75
UPC Individual Carton:
812483018942
Individual Carton Dimensions:
8" L x 8" W x 24" H
Individual Carton Cubic Feet:
0.89

Product Resources

Product Instructions

BFL_Series_Installation_Instructions.pdf

Spec Sheets

BFL_Series_Baffle_Cup_Dispensers.pdfBFL_Series_Specification_Sheet.pdf

Cad/Revit

BFL-3_Elevation_View.dwgBFL-3_Side_View.dwgBFL-3_Plan_View.dwg

Parts

Baffle_Cup_Dispenser_Parts_List.pdf
