Model STL-2FS

In-Counter adjustable plastic cup dispenser - 1 spring - 17" Length
8 oz. to 44 oz. cups
ABS plastic cup dispenser - 17" L - F spring only
Simple and fast tool free adjustment mechanism (adjustable clips)

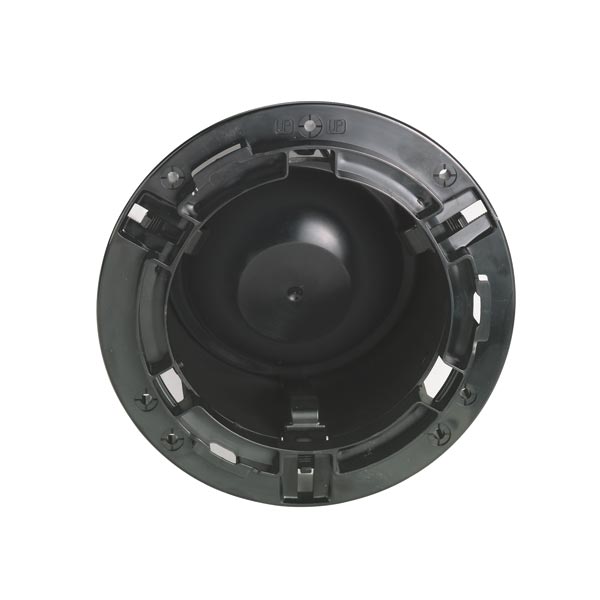

Integrated mounting collar fully supports dispenser from front of counter
NSF listed
Cup rim diameters: 3-1/8" to 4-1/2"

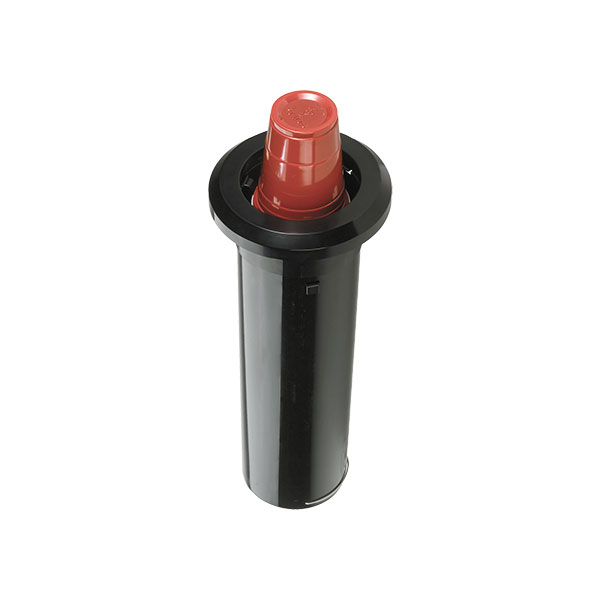

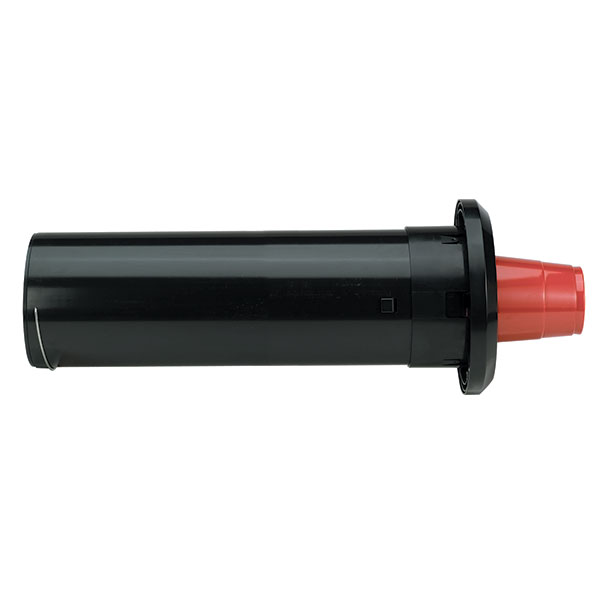

Note:This dispenser ships with a single "F" (light) compression spring and is for use with paper, plastic or foam cups in a horizontal positon or foam cups in a vertical position. Always verify cup rim diameter prior to ordering.
Where to BuyView Product PDF

Product Overview

STL-2 cup dispensers are the only dispensers you will need for a variety of paper, plastic and foam cups ranging from 8 oz. to 44 oz. These one-size-fits-all in-counter cup dispensers utilize a simple and fast tool free adjustment mechanism to adjust for cups and containers with rim diameters ranging from 3 1/8" – 4 1/2". This model includes a single light compression spring and will work with foam cups in any mounting position and paper/plastic cups in horizontal mounting positions. Dispenser has a short under-counter length of 17". Innovative design allows the dispenser to be adjusted without removing from the counter. Quality ABS plastic construction with a no-jam design provides years of dispensing reliability. All models are NSF listed.

Product Specifications

Model #:
STL-2FS
Product Family:
STL Series
Product Description:
In-Counter adjustable plastic cup dispenser - 1 spring - 17" Length
Product Dimensions:
7-1/8" Dia. X 18" L
Accommodates:
8 oz. to 44 oz. paper, plastic or foam cups
Other Specifications:
Cup Dispenser, adjustable, one spring (F), in-counter, holds 8 oz. to 44 oz. cups, rim dia. 3-1/8" - 4-1/2", ring bezel 7-1/8", cut-out 5-1/4", 17" under-counter length, ABS plastic construction, foam cups any mounting position, paper or plastic cups in horizontal mounting only, NSF
Construction Material:
ABS plastic
Dispensing Mechanism:
Adjustment clips
Country of Origin:
USA
Certifications:
NSF, One-Size-Fits-All, USA,

Packaging Specifications

Case Quantity:
6
UPC Master Case:
812483012506
Master Carton Dimensions:
24" L x 18" W x 24" H
Master Carton Cubic Feet :
6
Physical Case Weight:
19
UPS/FedEx Dimensional Case Weight:
75
UPC Individual Carton:
812483019109
Individual Carton Dimensions:
8" L x 8" W x 24" H
Individual Carton Cubic Feet:
0.89

Product Resources

Product Instructions

STL_Series_Installation_Instructions.pdfSTL_Series_Troubleshooting_Guide.pdf

Spec Sheets

STL_Series_Adjustable_Cup_Dispensers.pdfSTL_Series_Specification_Sheet.pdfSTL-2_Series_Drawing_and_Dimensions.pdf

Cad/Revit

STL-2FS_Elevation_View.dwgSTL-2FS_Side_View.dwgSTL-2FS_Plan_View.dwg

Parts

Adjustable_Cup_Dispenser_Parts_List.pdf
